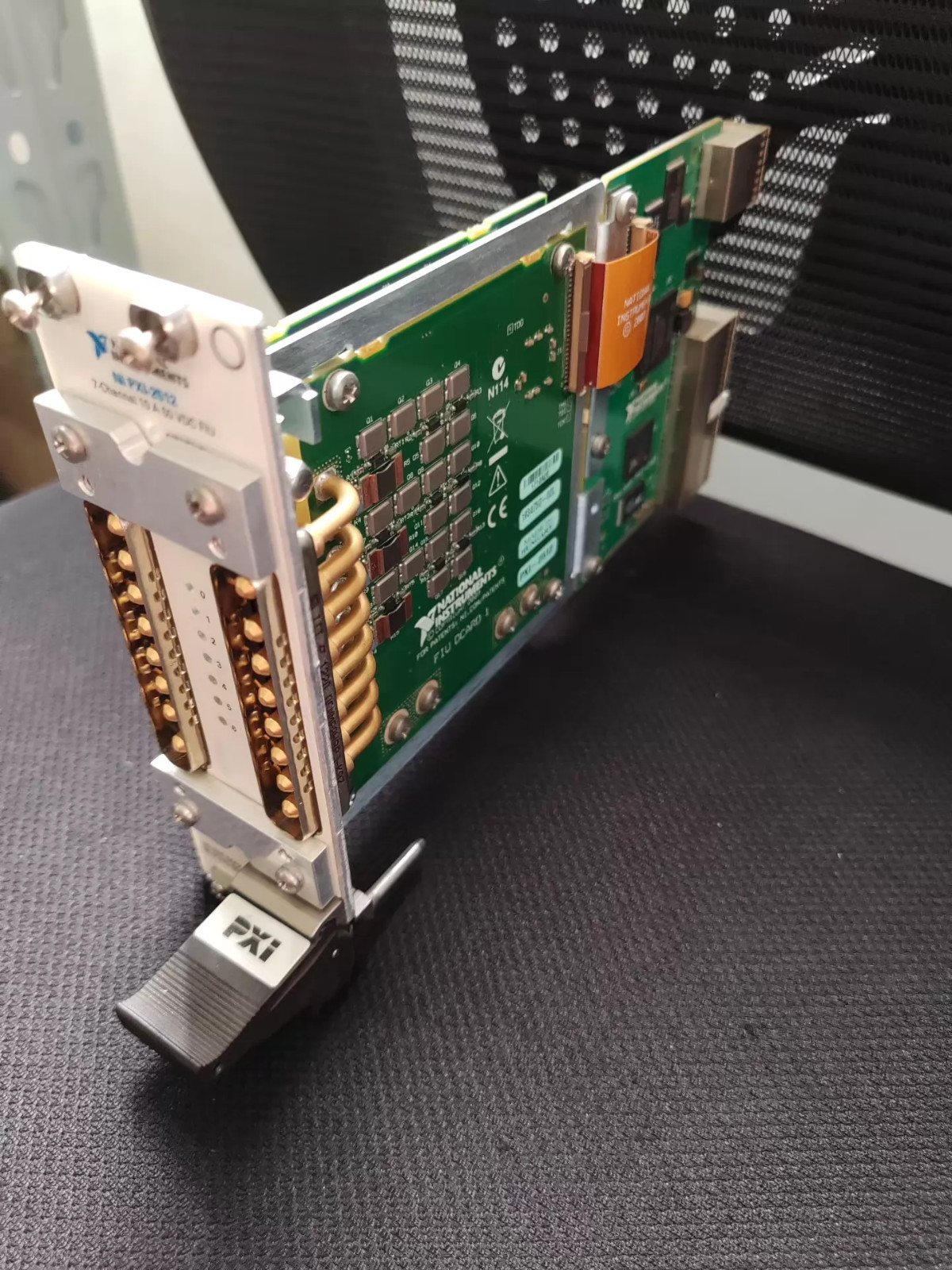

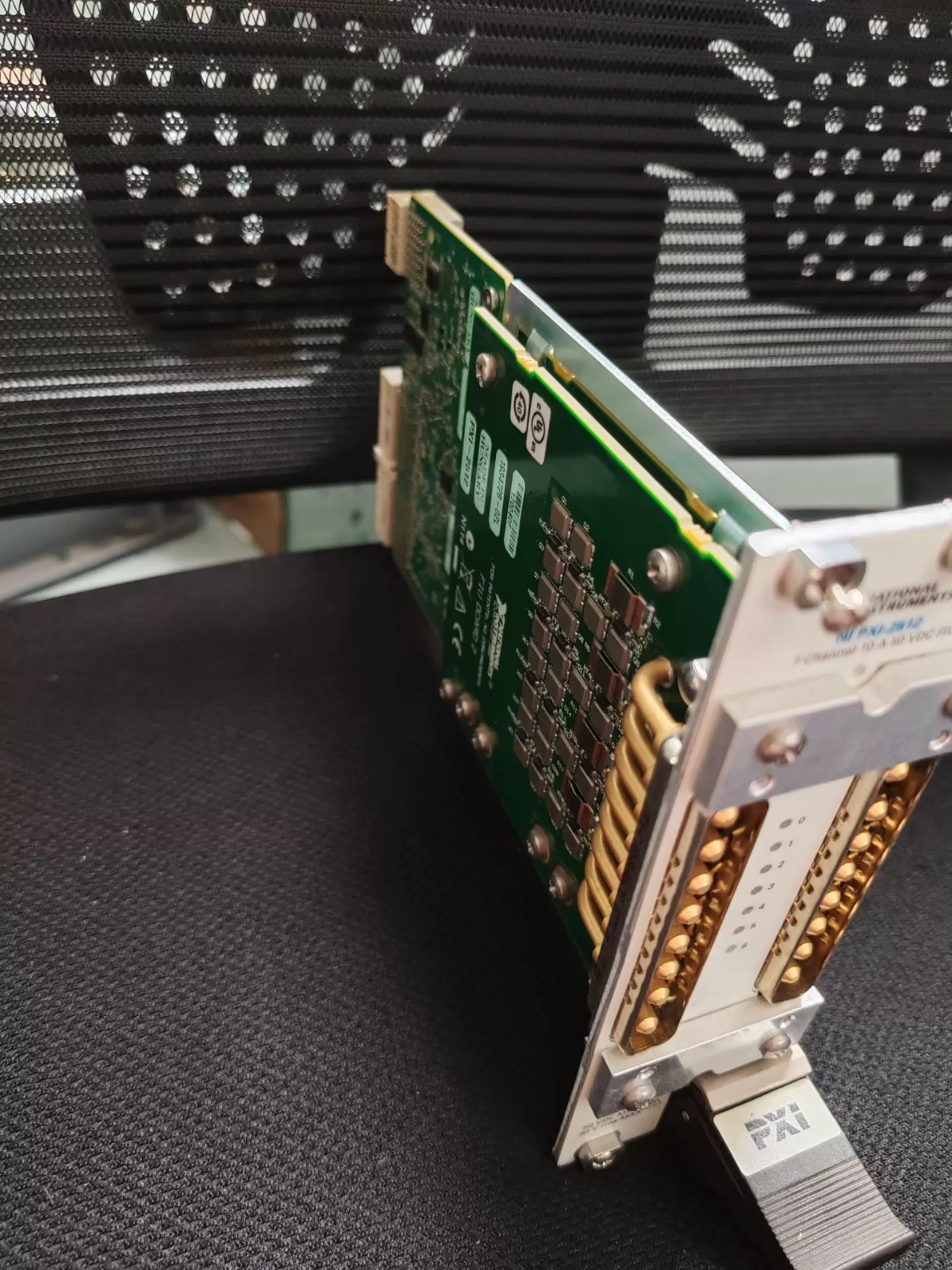

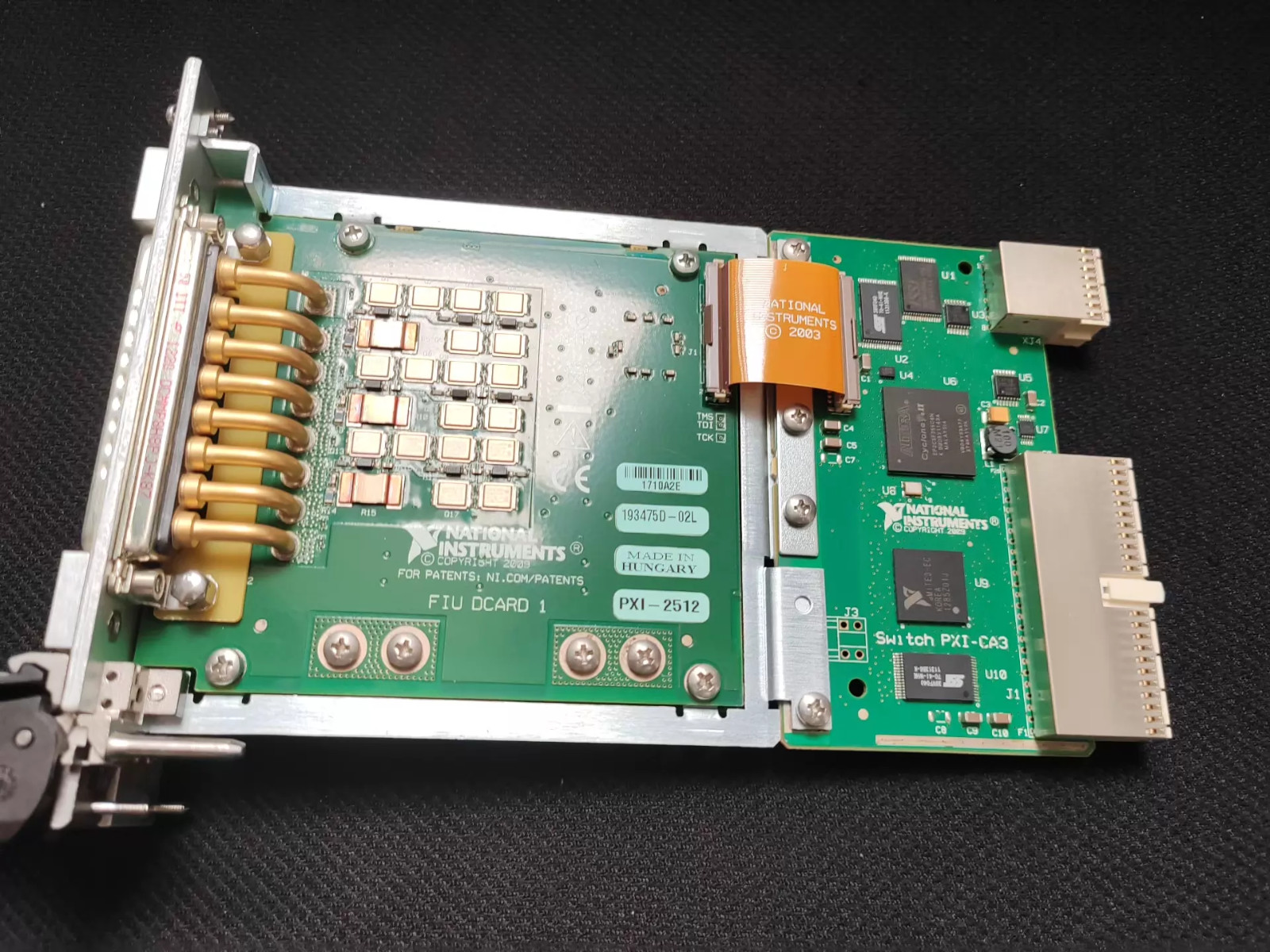

Used National Instruments NI PXI-2512 Signal Insertion Switch Module Card
$ 237.6
Description
Used National Instruments NI PXI-2512 Signal Insertion Switch Module Card. TheNI PXI-2512 is a3U PXI 7-channel, 10 A Fault Insertion Unit (FIU) switch module designed forhardware-in-the-loop (HIL) simulation and electronic reliability testing. Form Factor : 3U PXI (2-slot wide). NI PXI-2512 (Part Number: 778572-12) English Description: The NI PXI-2512 is a 3U PXI 7-channel, 10 A Fault Insertion Unit (FIU) switch module designed for hardware-in-the-loop (HIL) simulation and electronic reliability testing. Built with high-speed FET switches , it enables precise fault simulation on electronic control systems and test circuits NI NI . Core Specifications Channels : 7 independent feedthrough channels NI Switch Type : Solid-state FET switches NI Max Continuous Current : 10 A (per channel/common) Max Pulsed Current : 50 A (for up to 600 μs) Voltage Rating : 50 VDC, 30 Vrms (CAT I) On-Resistance : 16 mΩ typical Switching Bandwidth : 800 kHz Switching Time : 8 μs typical (35 μs max) Form Factor : 3U PXI (2-slot wide) Connectors : 2 × 8-pin DSUB male (front panel) Protection : Overcurrent (10.5 A typical) & overtemperature detection Fault Simulation Topology Independent channel control NI Fault buses : Simulate: Open circuits (interrupted connections) NI Shorts between pins NI Shorts to ground NI Shorts to battery/voltage sources NI Software & Compatibility Driver : NI-SWITCH Programming : LabVIEW, LabVIEW Real-Time, C/C++, .NET, Python OS : Windows, LabVIEW RT Applications : HIL test, ECU/FADEC validation, automotive/aerospace electronics reliability test NI NI Physical & Power Dimensions : 21.6 × 4.1 × 13.0 cm Weight : 403 g (14.2 oz) Power : 5 V (13.0 W), 3.3 V (1.0 W) Temp : 0 °C to 50 °C (operating) Certifications : RoHS compliant Summary: PXI-2512: 7-channel, 10 A PXI fault insertion switch module with FET switches, 8 μs speed, and overcurrent protection—optimized for HIL and ECU reliability test systems On May 10, 2026 at 23:55:37 PDT, seller added the following information:
