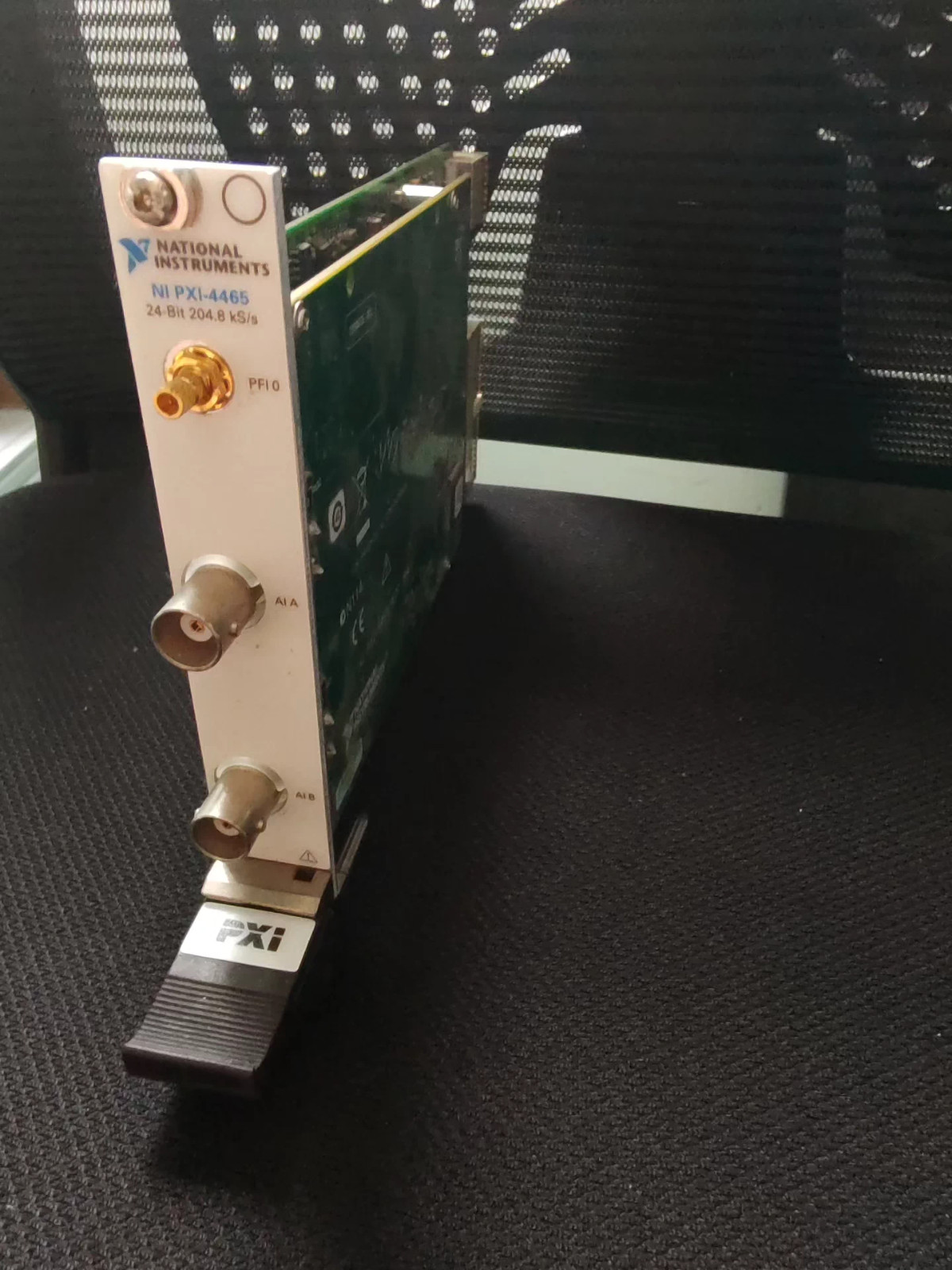

National Instruments Dynamic Signal Analyzer - NI PXI-4465 w/Warranty
$ 316.8
Description
National Instruments Dynamic Signal Analyzer - NI PXI-4465 w/Warranty. Form Factor : PXI (Hybrid Slot Compatible), Single Slot. PXI Trigger Bus & RTSI Support. NI PXI-4465 (Part Number: 188261H-13L). Dynamic Range:118 dB. Input Ranges: 6 software-selectable gains,±316 mV to ±42.4 V. NI PXI-4465 (Part Number: 188261H-13L) English Description: The NI PXI-4465 is a high-precision Dynamic Signal Analyzer (DSA) PXI module, purpose-built for high-accuracy sound and vibration measurements. It delivers exceptional signal fidelity and integrated signal conditioning for demanding acoustic and vibration test applications. Core Specifications Form Factor : PXI (Hybrid Slot Compatible), Single Slot Analog Inputs : Channels: 2 Differential Resolution: 24-bit Delta-Sigma ADCs Sampling Rate: 204.8 kS/s (simultaneous sampling) Dynamic Range: 118 dB Total Harmonic Distortion (THD): -108 dB Input Ranges: 6 software-selectable gains, ±316 mV to ±42.4 V Coupling: Software-selectable AC/DC Signal Conditioning: Built-in IEPE (2 mA / 10 mA) excitation for accelerometers and microphones Anti-Aliasing Filters: Variable, automatically tracking sampling rate I/O Connectors : 2 x BNC (AI), 1 x SMB (External Clock) Timing & Synchronization : PXI Trigger Bus & RTSI Support External Reference Clock Input Software & Compatibility : Driver: NI-DAQmx Applications: LabVIEW, Sound and Vibration Measurement Suite OS Support: Windows, LabVIEW Real-Time Physical : Operating Temperature: 0 °C to 55 °C Certifications: RoHS compliant Typical Applications The PXI-4465 is ideal for high-precision sound level measurement, audio testing, structural vibration analysis, automotive NVH (Noise, Vibration, Harshness) testing, acoustic research, and sensor calibration . Summary: PXI-4465: 2-channel, 24-bit, 204.8 kS/s Dynamic Signal Analyzer for PXI—featuring IEPE conditioning, wide input ranges, and ultra-low distortion for precision sound and vibration measurement systems. On May 11, 2026 at 02:24:52 PDT, seller added the following information:
