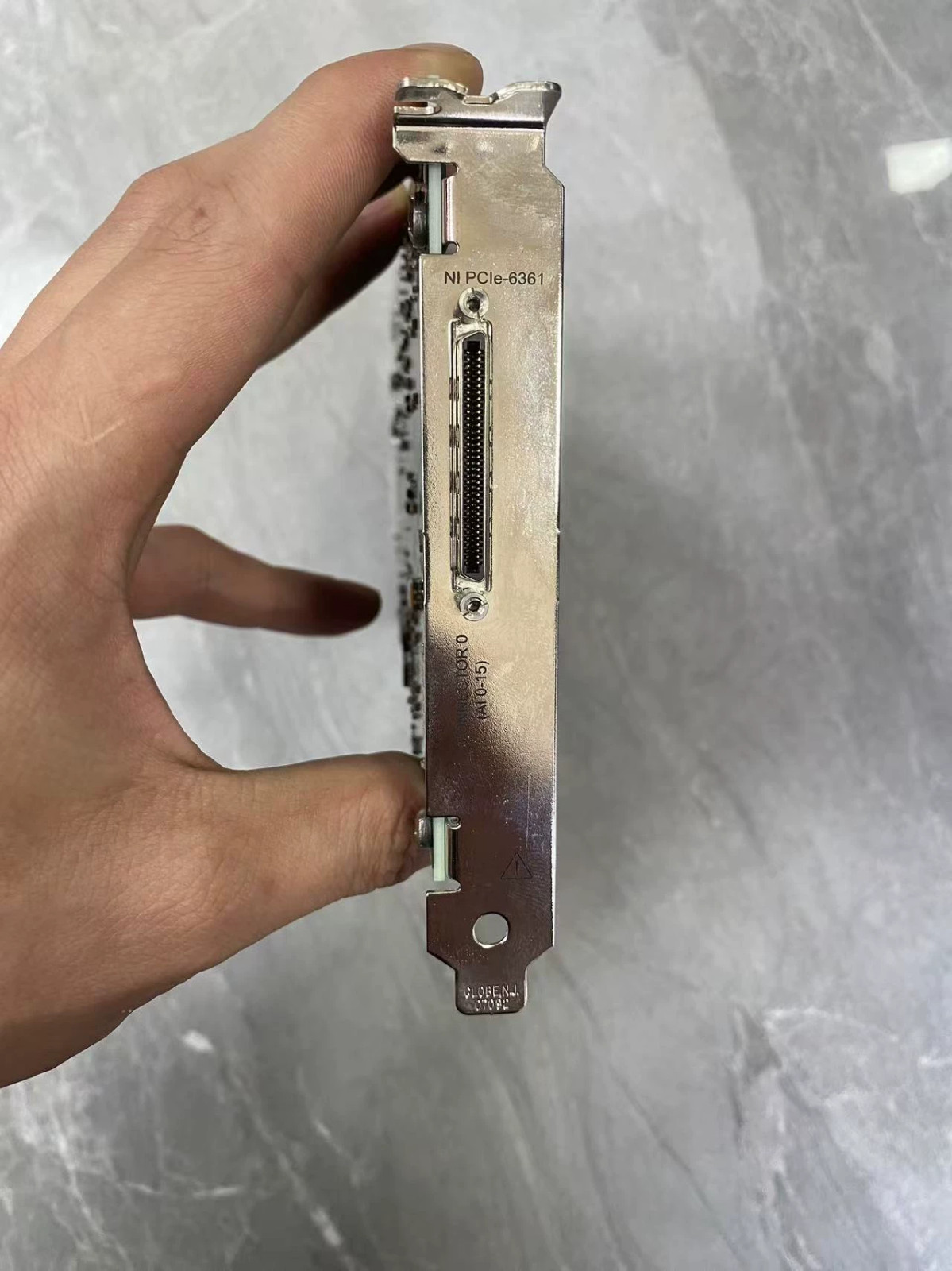

used National Instruments NI pcie-6361 NI DAQ Card, X-Series, Multifunction
$ 691.68
Description
used National Instruments NI pcie-6361 NI DAQ Card, X-Series, Multifunction. Channels:16 single-ended (SE) or 8 differential (DIFF) NI. Resolution:16-bit NI. Max Single-Channel Rate:2.00 MS/s NI. Max Aggregate Rate:1.00 MS/s NI. Input Ranges:±0.1 V, ±0.2 V, ±0.5 V, ±1 V, ±2 V, ±5 V, ±10 V NI. NI PCIe-6361: X Series PCI Express Multifunction I/O Device (16 AI, 24 DIO, 2 AO) (Official English Description) The NI PCIe-6361 is a high-performance X Series multifunction data acquisition (DAQ) device for the PCI Express (PCIe) bus. It combines high-speed analog I/O, flexible digital I/O, and precise counter/timer functions, ideal for advanced test, measurement, and control applications. Full English Description (Official) The PCIe-6361 features 16 analog input (AI) channels , 2 analog output (AO) channels , 24 digital I/O (DIO) channels , and 4 32-bit counter/timers , all integrated on a single PCIe board. Powered by the NI-STC3 timing and synchronization controller , it delivers independent, high-precision timing engines for analog and digital tasks, supporting retriggerable operations and advanced synchronization. With a high-throughput PCIe interface and multicore-optimized NI-DAQmx driver software, it ensures efficient data streaming and reliable performance. It is well-suited for applications from high-speed data logging to complex control and test automation. Key Specifications & Features (English) Part Number: 781050-01 Bus Interface: PCI Express (PCIe) x1 Analog Inputs (AI): Channels: 16 single-ended (SE) or 8 differential (DIFF) NI Resolution: 16-bit NI Max Single-Channel Rate: 2.00 MS/s NI Max Aggregate Rate: 1.00 MS/s NI Input Ranges: ±0.1 V, ±0.2 V, ±0.5 V, ±1 V, ±2 V, ±5 V, ±10 V NI Input Impedance: >10 GΩ Overvoltage Protection: ±11 V Analog Outputs (AO): Channels: 2 Resolution: 16-bit Max Update Rate: 2.86 MS/s Output Range: ±10 V Digital I/O (DIO): Channels: 24 bidirectional TTL/CMOS (5 V) Timing: 8 hardware-timed channels up to 10 MHz Counters/Timers: Quantity: 4 × 32-bit Max Timebase: 100 MHz Functions: PWM, encoder measurement, pulse generation, event counting Timing & Sync: NI-STC3, 10 ns resolution NI Software: NI-DAQmx driver; compatible with LabVIEW, LabWindows/CVI, C/C++.NET Applications: High-speed data acquisition, precision control, industrial automation, test systems, sensor measurement On May 14, 2026 at 20:05:35 PDT, seller added the following information:
