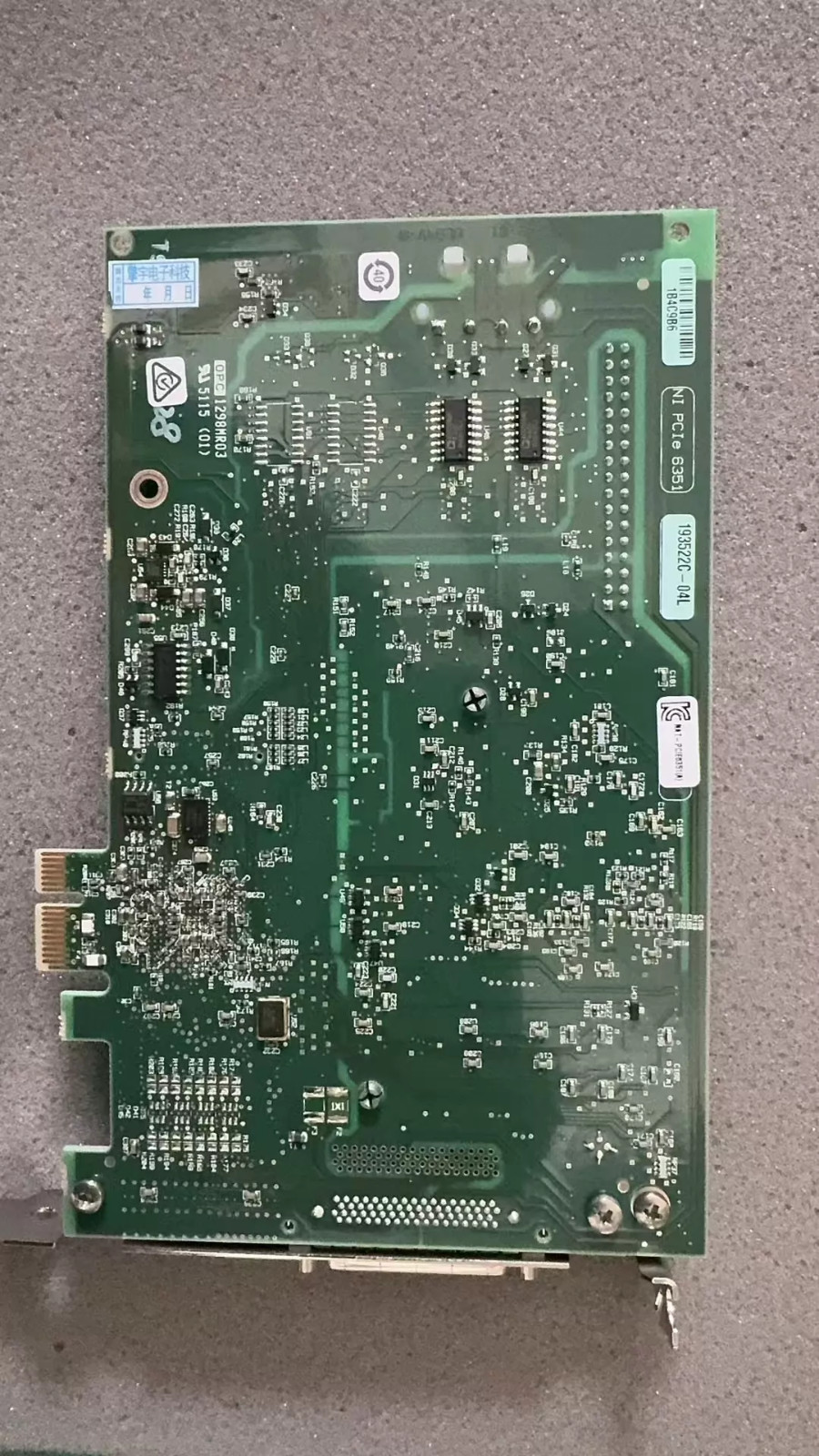

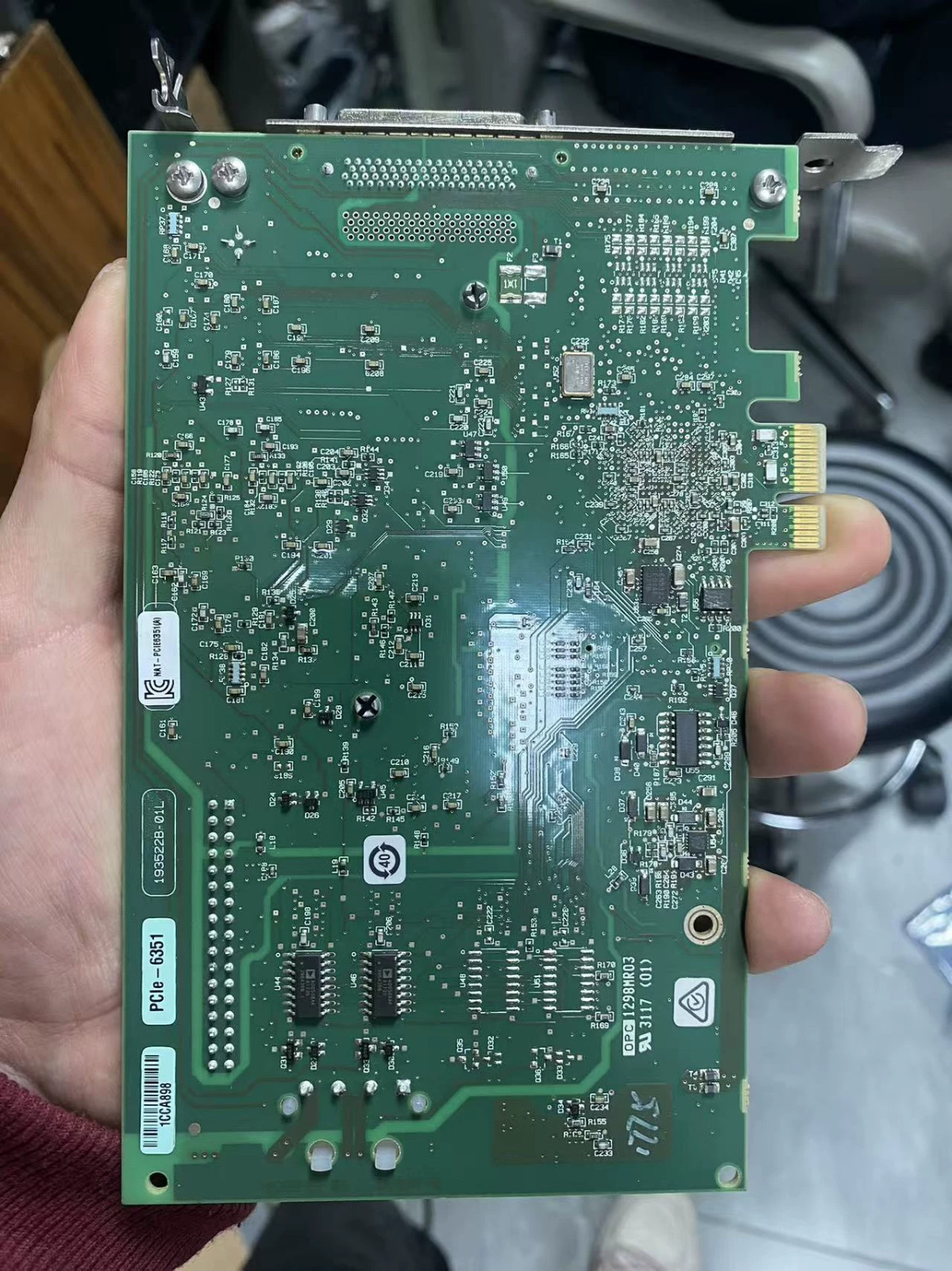

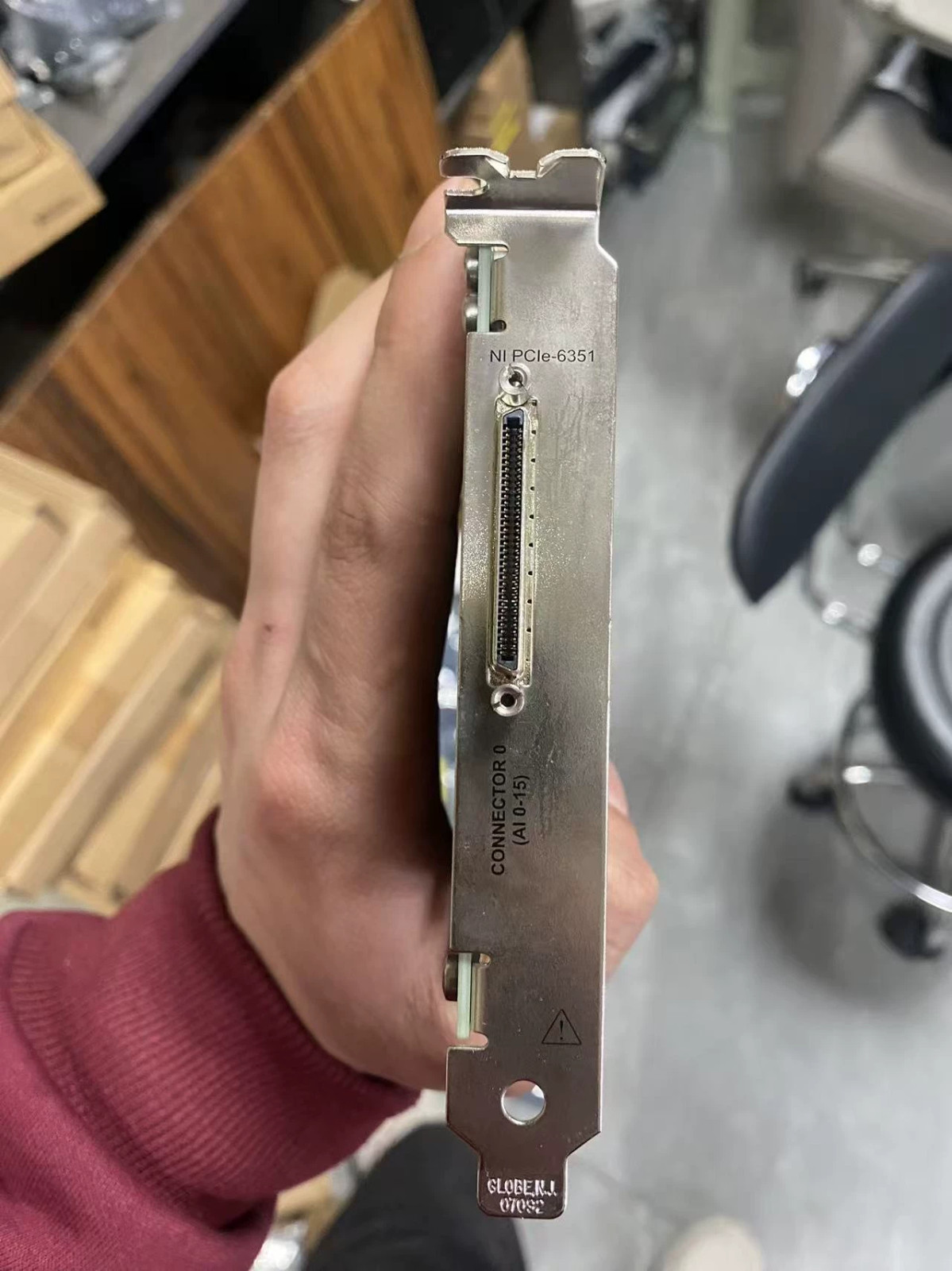

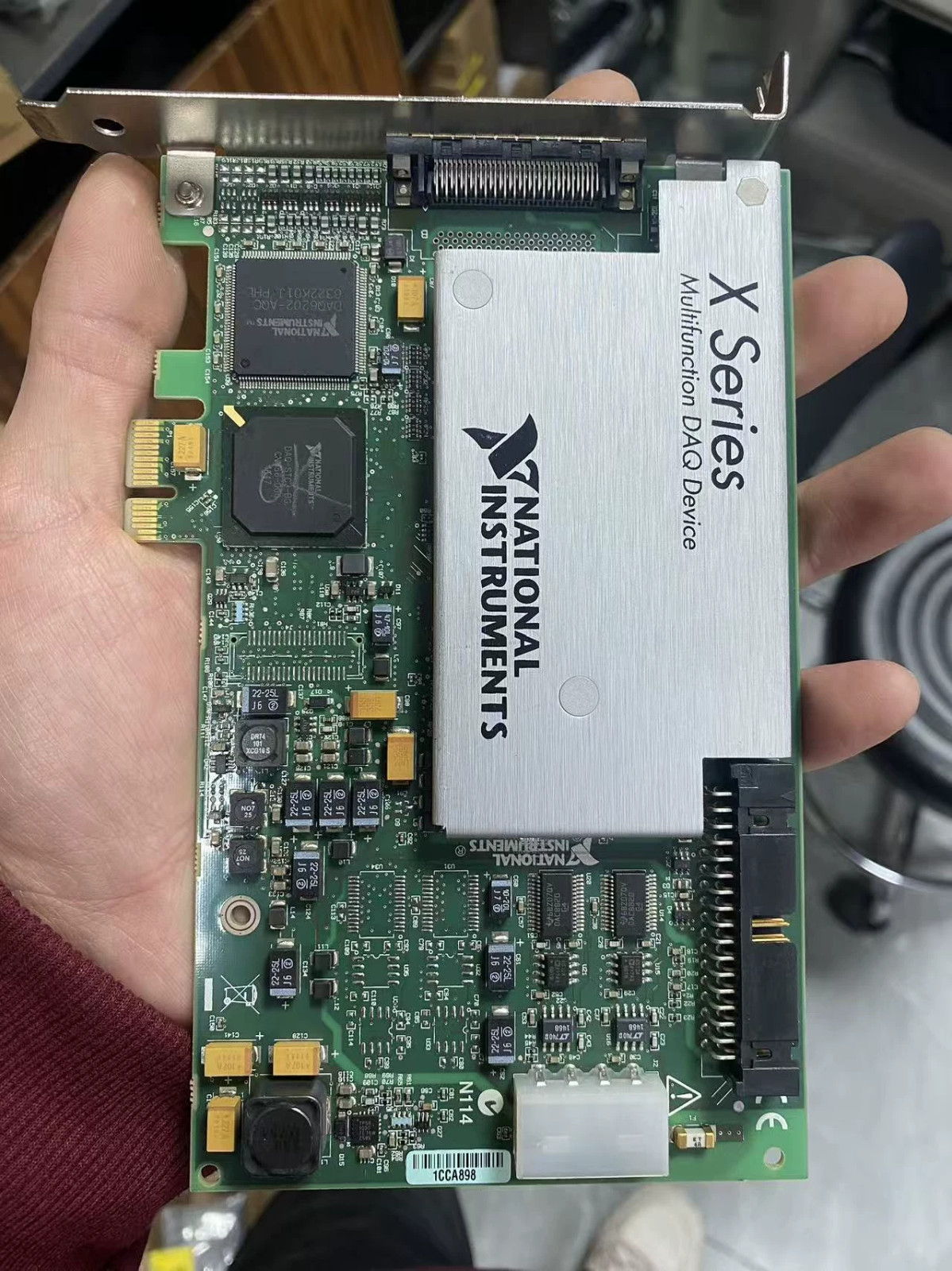

National Instruments NI PCIe-6351 NI DAQ Card, X-Series, Multifunction
$ 641.52
Description
National Instruments NI PCIe-6351 NI DAQ Card, X-Series, Multifunction. NI PCIe-6351 (Part Number: 781048-01). Channels:16 single-ended (SE) or 8 differential (DIFF) NI. Resolution:16-bit NI. Sampling Rate:1.25 MS/s (single-channel) ,1.0 MS/s (aggregate multi-channel) NI. NI PCIe-6351 (Part Number: 781048-01) English Description: The NI PCIe-6351 is a high-performance X Series PCI Express multifunction I/O data acquisition (DAQ) device that combines precise analog I/O, flexible digital I/O, and advanced counter/timer functionality. It delivers high-throughput performance and advanced timing features for a wide range of automated test, measurement, and control applications. Core Specifications Form Factor : PCI Express (PCIe) x1 Analog Input (AI) : Channels: 16 single-ended (SE) or 8 differential (DIFF) NI Resolution: 16-bit NI Sampling Rate: 1.25 MS/s (single-channel) , 1.0 MS/s (aggregate multi-channel) NI Input Ranges: Software-selectable ±10 V, ±5 V, ±2 V, ±1 V, ±0.5 V, ±0.2 V, ±0.1 V CMRR: 100 dB (DC to 60 Hz) Input Impedance: >10 GΩ Analog Output (AO) : Channels: 2 NI Resolution: 16-bit NI Update Rate: 2.86 MS/s NI Output Range: ±10 V NI Digital I/O (DIO) : Lines: 24 (3 ports of 8 lines) NI Timing: 8 hardware-timed lines (Port 0) up to 10 MHz Direction: Software-configurable as input or output Counters/Timers : Quantity: 4 32-bit counters NI Functions: Quadrature encoder measurement, PWM generation, pulse generation, frequency measurement, event counting NI Timing & Synchronization : NI-STC3 timing and synchronization technology NI Independent analog and digital timing engines NI Retriggerable measurement tasks NI Multi-device synchronization via RTSI and PFI lines Software & Compatibility : Driver: NI-DAQmx NI Programming: LabVIEW, LabWindows/CVI, C/C++, .NET, Python NI OS Support: Windows, LabVIEW Real-Time NI Physical & Environmental : Connector: 68-pin VHDCI Operating Temperature: 0 °C to 55 °C NI Certifications: RoHS compliant Applications The PCIe-6351 is ideal for high-speed data logging , precision sensor measurement, automated test equipment (ATE), control systems, signal generation, and any application requiring high-performance analog and digital I/O with advanced synchronization. Summary: PCIe-6351: 16 AI / 2 AO / 24 DIO / 4 Counters, 16-bit, 1.25 MS/s PCIe X Series DAQ—delivering high-throughput, precision I/O and advanced timing for test, measurement, and control systems. NI On May 11, 2026 at 00:28:41 PDT, seller added the following information:
