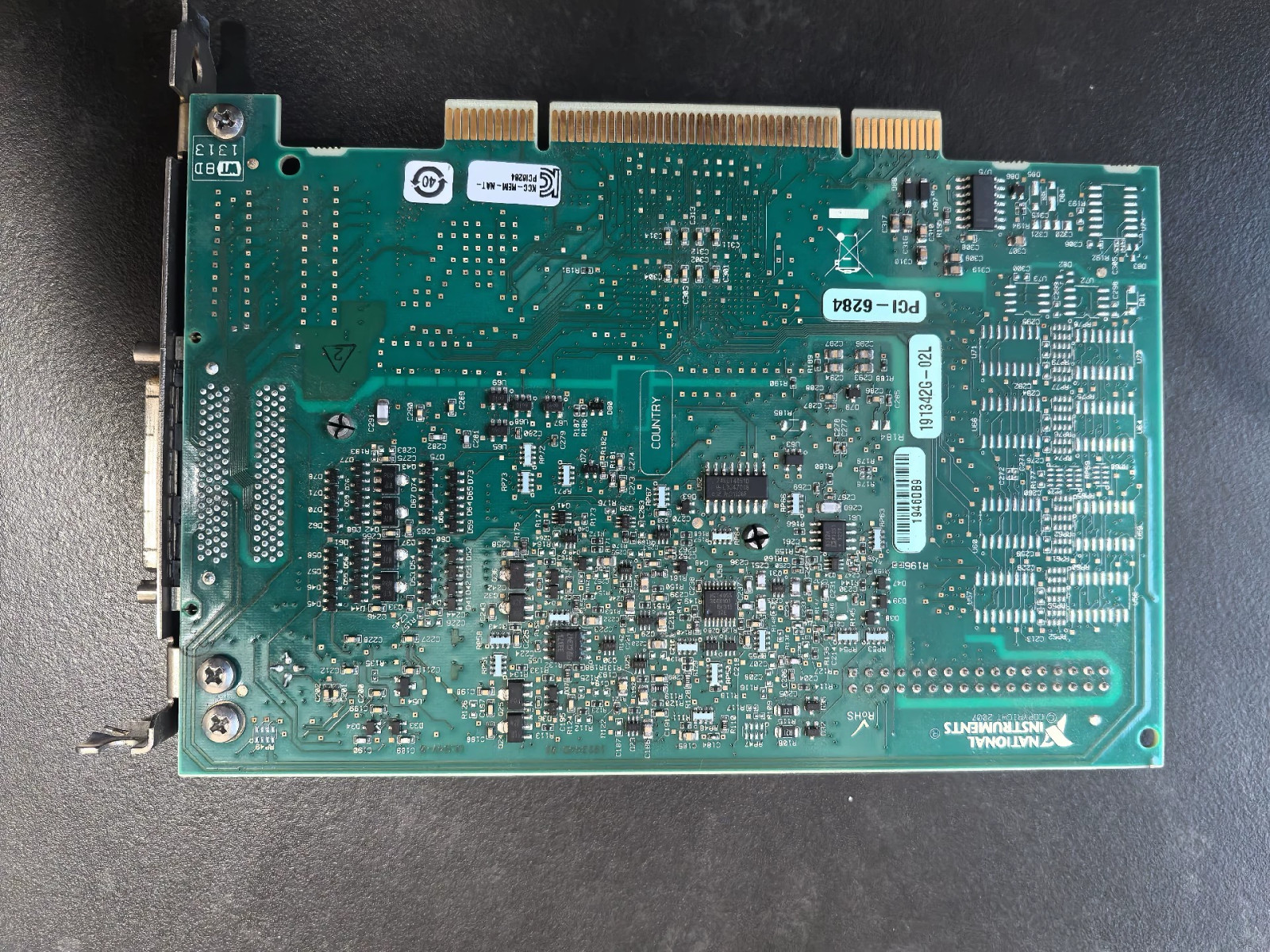

National Instruments NI PCI-6284 NI DAQ Card, 18-bit Analog Input, Test passed
$ 411.84
Description
National Instruments NI PCI-6284 NI DAQ Card, 18-bit Analog Input, Test passed. PCI‑6284 (M Series Multifunction DAQ PCI Card). 32 single‑ended / 16 differential channels NI. Max sampling rate: 625 kS/s (single‑channel), 500 kS/s (aggregate) NI. Input impedance:>10 GΩ || 100 pF (powered on) NI. PCI‑6284 (M Series Multifunction DAQ PCI Card) The PCI‑6284 (part number 779110‑01 ) is a high‑resolution, high‑speed M Series multifunction data acquisition (DAQ) PCI board from National Instruments, designed for precision analog/digital measurement and control. It integrates 18‑bit analog input , correlated digital I/O , and 32‑bit counter/timers for laboratory, industrial, and manufacturing test applications NI . Key Features Analog Input (AI) 32 single‑ended / 16 differential channels NI 18‑bit resolution (no missing codes guaranteed) NI Max sampling rate: 625 kS/s (single‑channel), 500 kS/s (aggregate) NI Software‑selectable ranges: ±0.1 V, ±0.2 V, ±0.5 V, ±1 V, ±2 V, ±5 V, ±10 V NI Input impedance: >10 GΩ || 100 pF (powered on) NI Overvoltage protection: ±25 V (up to 8 pins) Digital I/O (DIO) 48 channels (5 V TTL/CMOS compatible) NI Correlated timing with AI for synchronized measurements Software‑configurable as input or output Counter/Timers 2 × 32‑bit counter/timer channels NI For pulse generation, event counting, quadrature encoder measurement Base clock accuracy: 50 ppm NI Triggering & Timing Analog + digital triggering (edge, window, hysteresis) NI RTSI bus support for multi‑device synchronization 50 ns timing resolution NI Connector & Form Factor 68‑pin VHDCI connector Universal PCI (3.3 V/5 V) compatible Software Compatibility Drivers: NI‑DAQmx (recommended) NI Supported environments: LabVIEW, LabWindows/CVI, C/C++, Python NI‑MAX for configuration, calibration, and test panels Applications Precision sensor measurement (voltage, strain, thermocouple) Laboratory automation & research data logging Design verification & functional test (DV/FT) Manufacturing test & process monitoring High‑channel‑count mixed‑signal systems Status & Certifications Obsolete / Discontinued CE, FCC, UL, C‑UL, RoHS compliant On May 20, 2026 at 00:41:40 PDT, seller added the following information:
