New HFD3175 Circuit Breakers for CUTLER HAMMER 175 AMP 3P 600V BREAKER
$ 256.61
Description

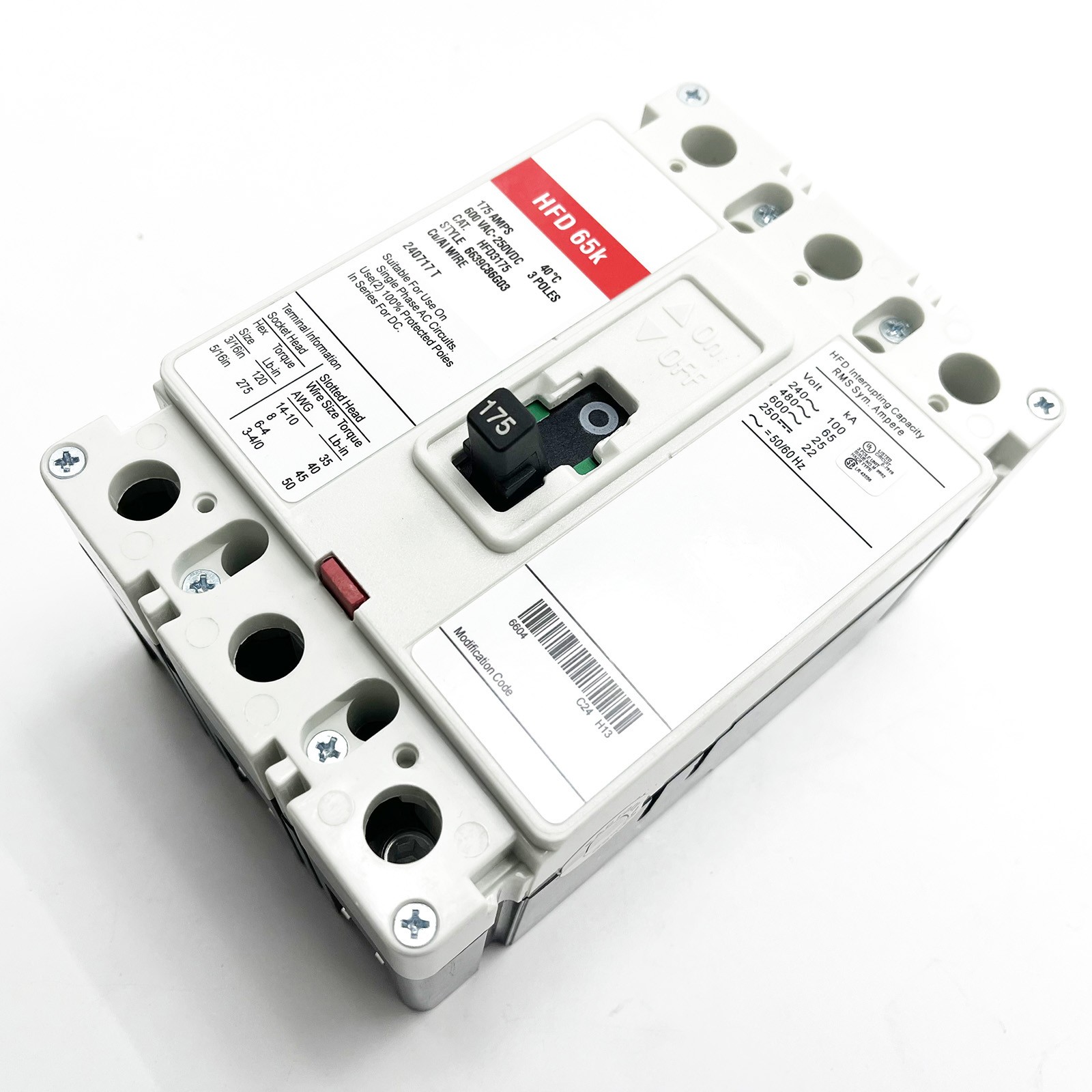

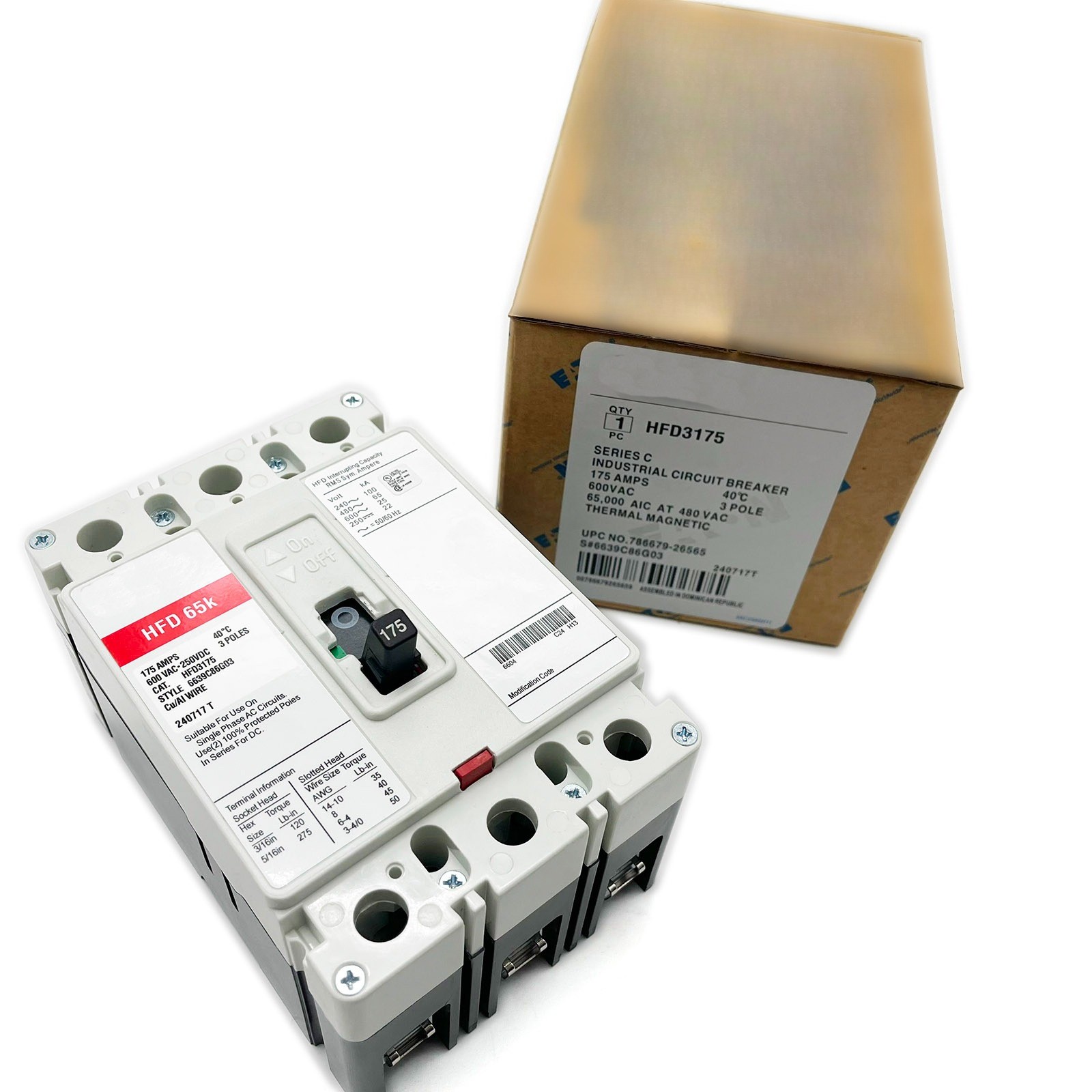

New HFD3175 Circuit Breakers for CUTLER HAMMER 175 AMP 3P 600V BREAKER. 1 PCS Circuit Breakers HFD3175 (As picture shows). Suitable for 2 Pole applications, use outside poles (single phase). The Family of circuit breakers includes: 1. Themral-MagneticTrip Breakers. Electronic RMS Trip Breakers. Circuit Breakers Descript i on Con dition: New Manufacturer Part Number: HFD3175 Package included: 1 PCS Circuit Breakers HFD3175 (As picture shows) For Eaton Cutler-Hammer Series C MCCB Panel mount 175 Ampere 3 Pole 65k rated @ 480VAC 600 VAC Thermal Magnetic Trip Fixed Trip Approval UL, CSA. CE Mfg Status: Available Industrial New or Re-certified 175A Molded Case #6639C98G02, thermal magnetic, F frame, 600 VAC at 50/60 Hz, 250 VDC, 200 ampere at 40 Deg c, 3 pole, interrupting rating 100 kiloampere at 240 vac, 65 kiloampere at 480 vac, 25 kiloampere at 600 vac, 22 kiloampere at 250 VDC (ul), 100 kiloampere at 220/240 VAC, 65 kiloampere at 380/415/440 vac, 25 kiloampere at 500 VAC, 22 kiloampere at 250 VDC (IEC), terminal standard pressure line terminal, standard pressure load terminal, size 4.125 inch w x 3.375 inch d x 6 inch h, approval Underwriters Laboratories, HFD model, applicable standard IEC 157-1. Suitable for 2 Pole applications, use outside poles (single phase). The Family of circuit breakers includes: 1. Themral-MagneticTrip Breakers. 2.Electronic RMS Trip Breakers. 3. Molded Case Switches. 4. Motor Circuit Protectors. 5. Current Limiting Breakers. 6. Special Application Breakers. 7. World Breakers. Cutler Hammer. New or Refurbished/Green are available.
