3 Pole DIN Rail Mount Circuit Breaker, 63 Amp 480V AC Miniature Circuit...
$ 12.18
Description

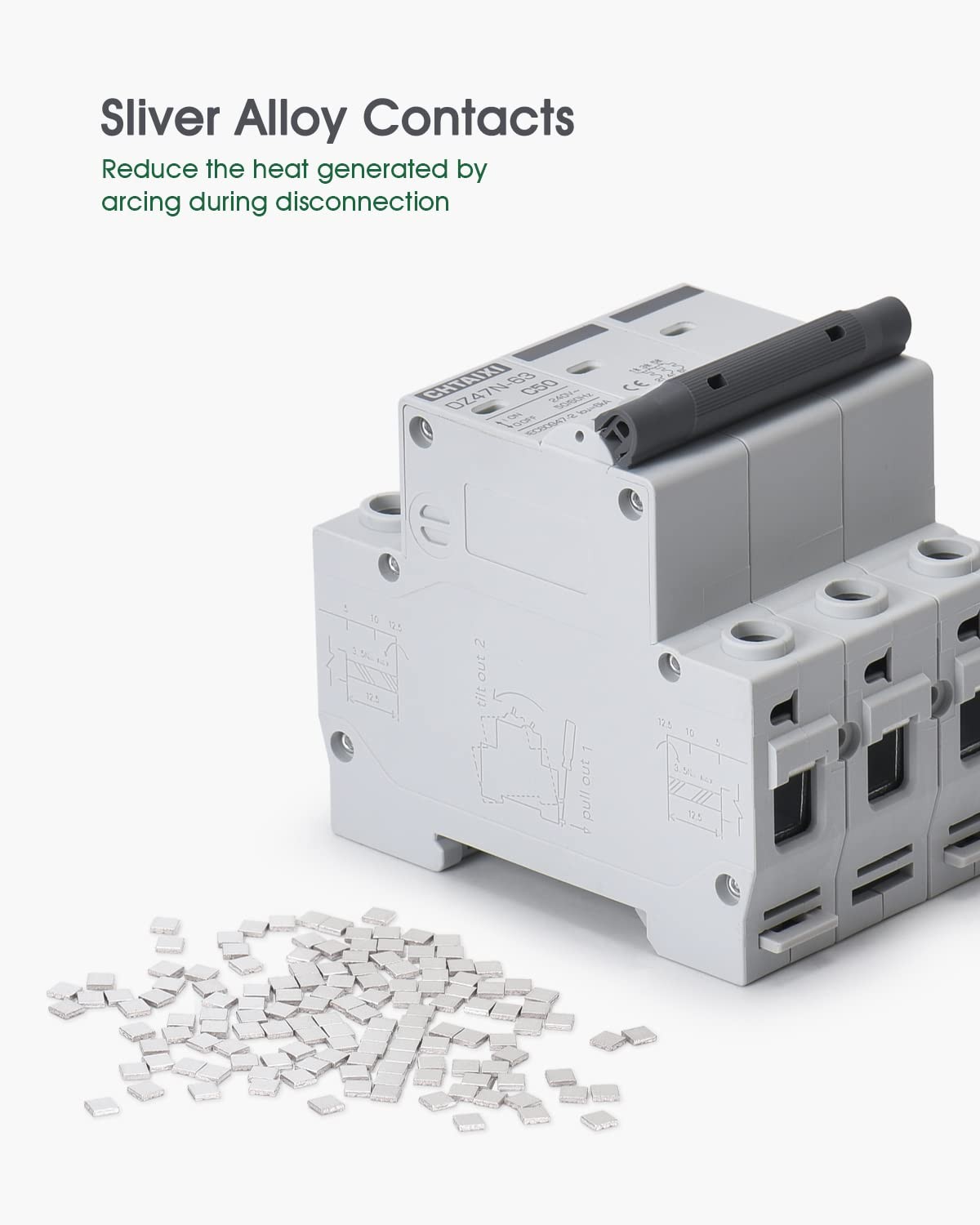

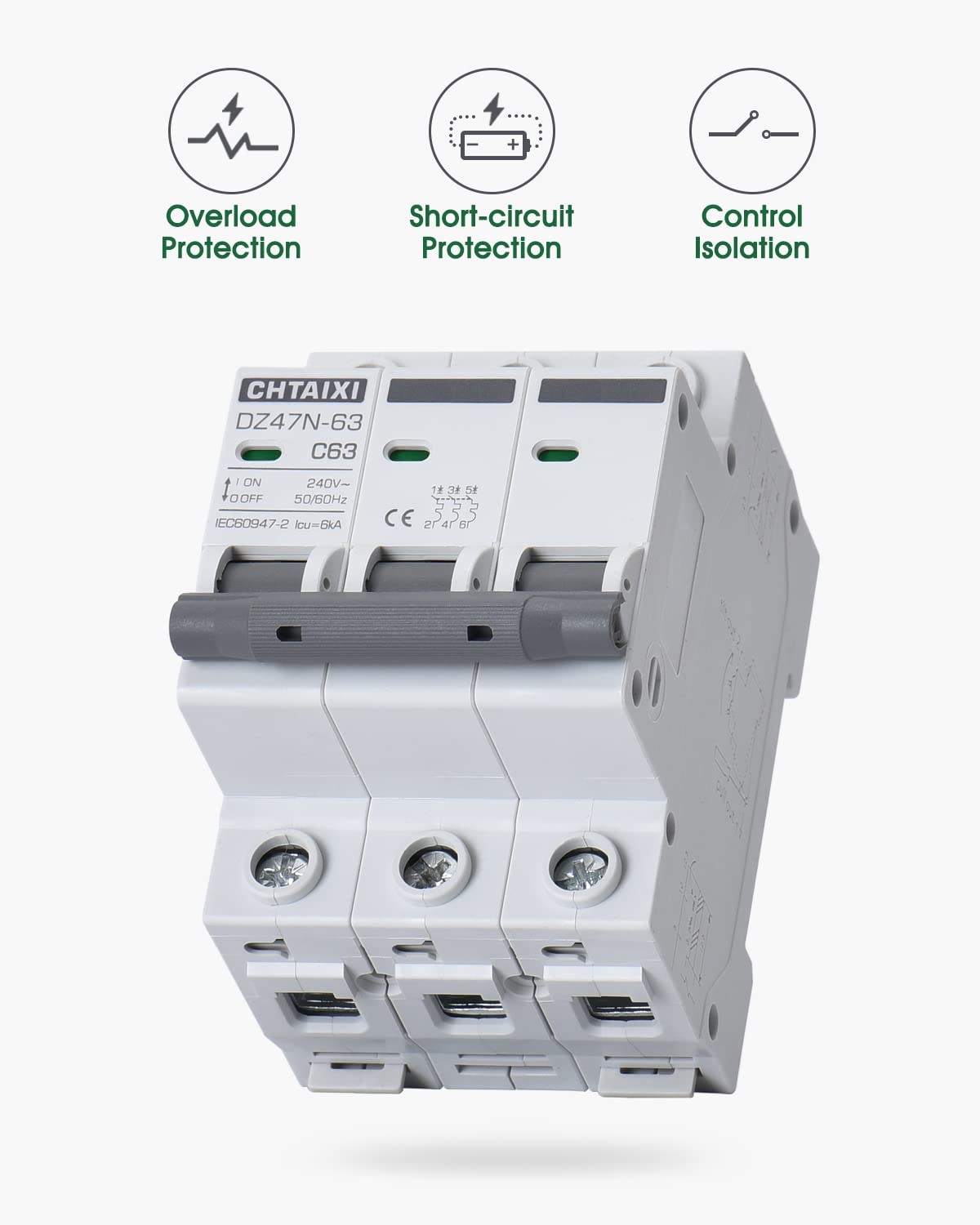

3 Pole DIN Rail Mount Circuit Breaker, 63 Amp 480V AC Miniature Circuit... . 3 Pole DIN Rail Mount Circuit Breaker, 63 Amp 480V AC Miniature Circuit Breaker, Thermal Magnetic Trip AC Disconnect Switch MCB C63. Item model number : 480V. Mounting Type: DIN Rail Mount. INSTALLATION: 35mm DIN rail mount, Screw clamp wires (Soft silicone wire needs to crimp fixed the wire end with copper crimp first). 3 Pole DIN Rail Mount Circuit Breaker, 63 Amp 480V AC Miniature Circuit Breaker, Thermal Magnetic Trip AC Disconnect Switch MCB C63 Product Details Package Dimensions : 3.66 x 3.54 x 2.32 inches; 11.36 ounces Item model number : 480V Manufacturer : CHTAIXI Brand: CHTAIXI Current Rating: 63 Amps Circuit Breaker Type: Standard Mounting Type: DIN Rail Mount Number Of Poles: 3 FUNCTIONS: Used to protect 480V AC circuit from overload and short circuit damage, and can also be used for control and isolation. CURVE C: Magnetic trip range 5-10 times rated current. QUALITY: Silver alloy contacts, flame retardant material shell, color indicator. APPLICATION: Can be used in 3 phase high power circuit or other 50/60Hz AC systems. INSTALLATION: 35mm DIN rail mount, Screw clamp wires (Soft silicone wire needs to crimp fixed the wire end with copper crimp first). Specifications Product type: AC Miniature Circuit Breaker Rated operational voltage: 240V / 480V AC (optional) Rated current [In]: 10 A / 16 A / 20 A / 25 A / 32 A / 40 A / 50 A / 63 A (optional) Poles: 3P Trip unit technology: Thermal-magnetic Curve code: C Breaking capacity: 6 kA (240V) / 5 kA (480V) Ics=Icu Uimp: 4 kV Mechanical durability: 10000 cycles Electrical durability: 4000 cycles Operating temperature: -13°F(-25℃) ~ 140°F(60℃) Mounting support: 35 mm DIN rail Tightening torque: 2.5 N.m Standard: IEC60947-2 Package includes 1 x AC miniature circuit breaker 1 x DIN rail 2 x Screws
