Matek SVPDB-12S Servo PDB With 12A BEC 9-55v to 5/6/8V
$ 12.84
Description

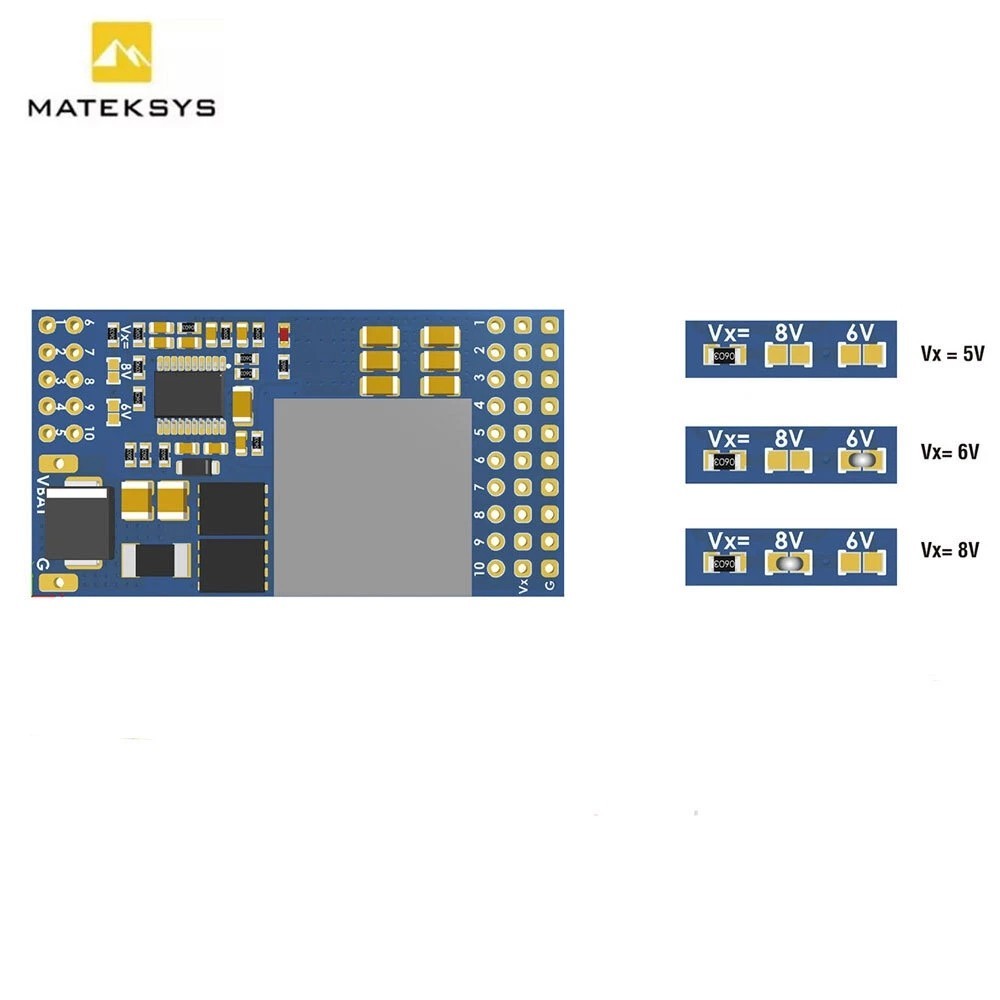

Matek SVPDB-12S Servo PDB With 12A BEC 9-55v to 5/6/8V. Supports continuous output current of up to 12A, peak current of 20A. Vx for servos, 5V, 6V, 8V Adj. Default is 5V. Synchronous switching step-down (buck) regulator with typical efficiencies of 88% to 96%. Specifications 9V to 55V Operating Input Range Vx for servos, 5V, 6V, 8V Adj. Default is 5V. Synchronous switching step-down (buck) regulator with typical efficiencies of 88% to 96% Supports continuous output current of up to 12A, peak current of 20A. Standby current: 5~10mA No protection for reversed input polarity Thermal Shutdown Output Short-circuit tolerant (2 seconds) Overcurrent protection & self-recovery Dropout voltage: 2V (Input>=10V is required for stable 8V output) Pins distance: 2.54mm Size & Weight: 50 x 27 x 8mm, 18g Packing: 1x SVPDB-12S, Dupont 2.54mm pins shipped unsoldered Applications Flight controllers without dedicated BEC for servos Reduces circuit loss and voltage drop on servo power wires for big scale RC Airplane
