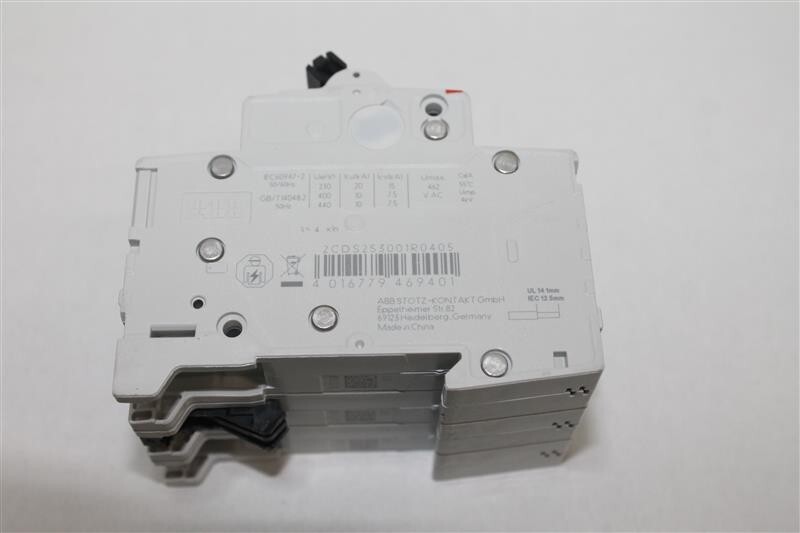

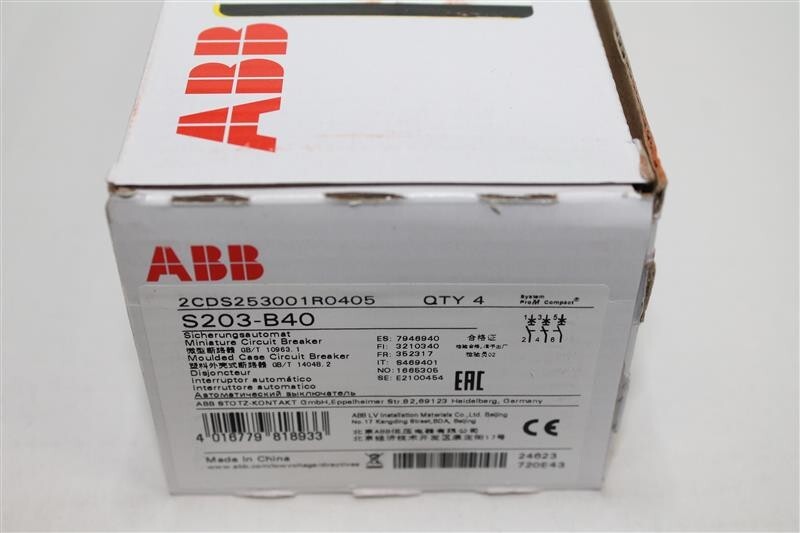

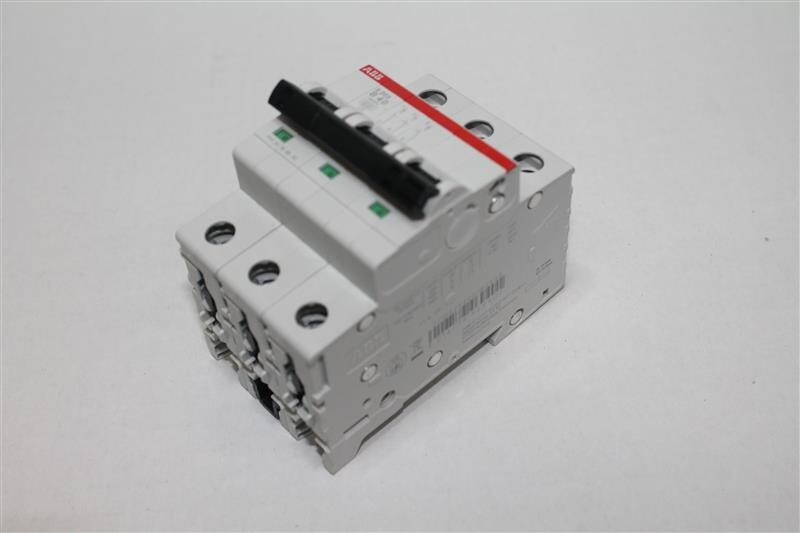

ABB S203-B40 Miniature Circuit Breaker

$ 34.67

Accessories Available: Yes Color: Gray Minimum Operational Voltage: 12 V AC/DC width: 52.5 mm Tightening Torque: 2.8 N·m Resistance to Vibrations: 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz Rated Current (In): 40 A Power Supply Connection: Arbitrary Reference Ambient Air Temperature: 30 °C Type: Miniature Circuit Breaker Resistance to Shock acc. to IEC 60068-2-27: 25g 2 shocks 13 ms Product Net Weight: 0.375 kg UPC: 4016779469401 Electrical Endurance: 10000 AC cycle Input Voltage Type: AC/DC Frequency (f): 50 Hz Contact Position Indication: Red ON / Green OFF Operating Temperature: -25 ... +55 °C Environmental Conditions: 28 cycles with 55 °C / 90-96 % and 25 °C / 95-100 % Item Width: 52.5 mm Terminal Type: Screw Terminals Recommended Screw Driver: Pozidriv 2 Model: S200 Storage Ambient Air Temperature: -40 ... +70 °C Mechanical Endurance: 20000 cycle MPN: S203-B40 Number of Normal Poles: 3P Wire Stripping Length: 12.5 mm Maximum Operational Voltage: 440 V AC Maximum (Incl. Tolerance) Operational Voltage: 440 V AC Power Loss: 14.4 W; at Rated Operating Conditions per Pole, 4.8 W Item Height: 88 mm Resistance to Shock: 25g 2 shocks 13 ms height: 88 mm Rated Impulse Withstand Voltage (Uimp): 4 kV; at 2000 m, 5 kV; at Sea Level, 6.2 kV Brand: ABB Screw Terminal Type: Failsafe Bi-directional Cylinder-lift Terminal Actuator Marking: I/O Dielectric Test Voltage: 50 / 60 Hz - 1 min 2 kV

Description

ABB S203-B40 Miniature Circuit Breaker. System pro M compact S200 miniature circuit breakers are current limiting. System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
